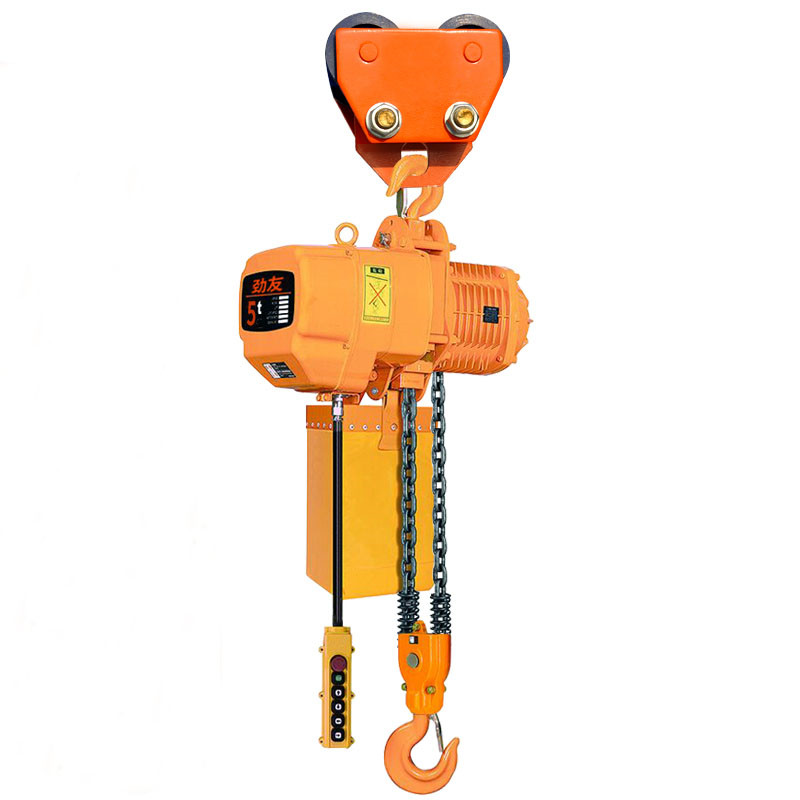

Electric Chain Hoist For Construction Lifting Equipment Crane With Hook Building Block Motor 1, 2, 3, 5ton

Electric chain hoist and copper core motor provide stable power output, reduce energy loss, fast conductivity, low heating, quenched gear, strong and durable, without jamming chain. G80 chain has high strength, large tension, strong bearing capacity and is not easy to deform. Alloy steel hook has strong bearing capacity, Lifting weight: 0.5tons,1ton, 2tons,3tons,5tons Wire rope length:4m, Customize the length according to customer needs. Voltage:220V,380V. just tell me your needs, and contact us.

Products Details

The weight of the electric chain hoist is generally 0.1 ~ 10 tons and the lifting height is 3 ~ 12 meters. The electric chain hoist features: advanced performance and structure, small volume, light weight, reliable performance, convenient operation and wide application range. It is very convenient for lifting heavy objects, loading and unloading, maintenance equipment and lifting goods. It can also be installed on suspended I-beam, curved track Lift heavy objects on the guide rail and fixed lifting point of the jib crane. All electric chain hoists are produced according to international standards. The body is beautiful, strong and durable. All internal gears are quenched at high temperature, which increases the wear resistance and toughness of gears. The most advanced international technology is adopted, with fine workmanship and tight fit between gears.1. Advanced performance and structure, 2. Small size, 3. Light weight, 4. Reliable performance, 5. Easy to operate, 6. Wide scope of application
Model Rated load speed Rated power Running speed Voltage Number of chains Chain diameter Applicable I-beam
0.5-01S 0.5T 7.2m/min 1.1KW Slow: 1.1m/min Fast: 21m/min 3-phase, 380V, 50Hz 1 6.3mm 75-125mm
01-01S 1T 6.8m/min 1.5KW 1 7.1mm 75-178mm
01-02S 1T 3.6m/min 1.1KW 2 6.3mm 75-178mm
1.5-01S 1.5T 8.8m/min 3.0KW 1 10mm 82-178mm
02-01S 2T 6.6m/min 3.0KW 1 10mm 82-178mm
02-02S 2T 3.4m/min 1.5KW 2 7.1mm 82-178mm
2.5-01S 2.5T 5.6m/min 3.0KW 1 11.2mm 100-178mm
03-01S 3T 5.6m/min 3.0KW 1 11.2mm 100-178mm
03-02S 3T 3.3m/min 3.0KW 2 10mm 100-178mm
03-03S 3T 2.2m/min 1.5KW 3 7.1mm 100-178mm
05-02S 5T 2.8m/min 3.0KW 2 11.2mm 112-178mm
chain electric hoist is operated by people on the ground with buttons, or in the cab or wired (wireless) remote control. electric chain hoist has high working level, better safety performance, high reliability and low failure rate. The chain runs in the sprocket, which is not easy to fall off or jump slot, and the use is more stable. Structural features of electric chain hoist: the product structure of electric hoist, the body adopts high-strength tensile shell or die-casting aluminum shell, and is precision manufactured by thin-wall extrusion process, with small volume, light weight and high strength. The standard electric chain hoist has an independent gearbox system, sealed the two-stage coaxial transmission gear mechanism in the gearbox, and adopts a long-life oil bath lubrication system. Electric chain hoist powder metallurgy clutch is used as overload protection device. Disc DC electromagnetic field braking is adopted for braking, with large braking torque, stability, speed and low noise.1. What about the payment term&price term? As usual, we accept T/T, credit card, LC, Western Union as the payment term, and the price term, FOB&CIF&CFR&DDP etc are ok. 2. What's the delivery time? Usually, we will delivery the goods within 5-18 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends. 3. Are we a manufacturer&factory or trading Company? Hebei Jinteng Hoisting Machinery Manufacturing Co., Ltd is a manufacturer in Hebei, China, we have specialized in crane&hoist over 20 years, our high quality products are welcomed in many countries.
